TC-D5532WRX

DirectCX 5MP Vandal-Resistant IR Dome Camera / NDAA Compliant

• 5MP resolution
• True Wide dynamic range (WDR)
• Vari-focal Lens (f=3.Omm – 13.5mm)
• Motion Detection
• Vandal Proof / IP66 supports
• Day and night (ICR)
• De-fog
• Coaxial OSD Control

Video
Image Sensor 1/2.8
Effective pixels 2616 x 1964
Total pixels
Max. Resolution 2592 X 1944
Scanning Mode Progressive Scan
Frame Rate TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
C[removed] N TSC / PAL(for previewing video)
Lens Type Motorized Vari-focal
Focal Length f = 3.0mm -13.5mm
IRIS Control DC IRIS
Angular Field of View Wide : 910(H) 660(V) 1200(D)
Tele : 310(H) 230(V) 380(D)
Pan / Tilt Range Pan: -175° – 175°
tilt: o° – 67° , Rotate: -177° – 177°
Min. illumination COLOR : 0.13 Lux @ Fl.4
B/w : O Lux (IR LED ON)
S/N Ratio More than 50dB
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed UTO / Manual (1/30,1 /25 sec – 1/30000Sec) / FLICKER
Day/Night YES(ICR)
IR DISTANCE (LEDs) 30m / 98.4 ft(4ea)I
Video Out 1 HD BNC (Signal Switchable)
function
AGC O — 10 Level Adjustable
Brightness O – 20 Level Adjustable
Sens-UP OFF / – x32
WDR(Wide Dynamic Range) OFF / FRAME / LINE (LOW, MIDDLE, HIGH)
ROI Mode Available
Backlight Compensation(BLC) OFF/ONI
HLC OFF / LOW / MIDDLE / HIGH
Motion Detection OFF/ON (4 zone)
Privacy Masking FF/ON (24 zone) BOX:16 POLYGON:8
Day & Night Color/B&W/EXTERN
Smart -IR(IR OPTIMIZER) 0-20 Level Adjustable
White Balance AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K)
Digital Noise Reduction OFF/LOW/MIDDLE/HIGH
Mirror MIRROR,FLIP
D-ZOOM(EZOOM) xl – x16
Sharpness 0-10 Level Adjustable
De-fog OFF / ON
Lens Shading(LSC) OFF / ON (o -100% Level Adjustable)
Language ENG / CHN / CHN(S) / JPN / KOR
Menu Control OSD button, TVI / AHD coaxial protocol
Environmental
Out-door Ready IP67, IKIO
Storage Temperature -20°c – 60°c (-4°F- 140°F) (Humidity : 0% – 95%)
Operating Temperature -10°c – 55°c (-14°F- 131°F) (Humidity : 0% – 90%)
Electrical
Power Source DC 12V, AC 24V
Power Consumption DC 12V/8W, AC 24V/ 8.3W
MECHANICAL
Dimensions O x H 0155mm x 105mm (6.1″ x 4.13″)

The post TC-D5532WRX first appeared on BTCO.

]]> TC-D5532RX https://www.btcolatam.com/producto/tc-d5532rx/ Tue, 27 Jun 2023 19:51:28 +0000 https://www.btcolatam.com/?post_type=producto&p=11636

TC-T5532WRX

DirectCX 5MP IR Dome Camera / NDAA Compliant

• 5MP resolution
• True Wide dynamic range (WDR)
• Vari-focal Lens (f=3.O mm – 13.5 mm)
• Motion Detection
• Coaxial OSD Control
• Day and night (ICR)
• De-fog

Video
Image 1/2.8” CMOS
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Frame Rate TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP,
30ips@2MP CVBS : NTSC / PAL(for previewing video)
Lens Type Motorized Vari-focal
Focal Length 3.0mm — 13.5mm
Aperture Fl.4 — 3.2
Iris Control DC IRIS
Angular Field of View Wide : 910(H) 660(V) 1200(D) Tele : 310(H) 230(V) 38(D)Y
Min. Illumination COLOR : 0.13 Lux @ Fl.4 B/w : O Lux (IR LED ON)
S/N Ratio More than 50dB
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30,1/25Sec – 1/30000Sec) / Anti-Flicker
Day and Night Yes (ICR)
IR Distance (LEDs) 30m / 98.4 ft (4ea)
Video Out 1 HD BNC (Signal Switchable)
Function
functions via OSD menu control • AGC : O – 10 Level Adjustable • Brightness : O – 20 Level Adjustable • Sens-UP : OFF / x? – x32 • WDR(Wide Dynamic
Range) : OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available • Backlight Compensation(BLC) : OFF/ON • HLC
: 1 – 20 Level Adjustable (ALL DAY/NIGHT ONLY) ACE(D-WDR/ATR-EX) : OFF / LOW / MIDDLE / HIGH Motion
Detection : OFF/ON (4 zone) • Privacy Masking : OFF/ON (24 zone) BOX:16 POLYGON:8 • Day Night :
Color/B&W/EXTERN • Smart-lR(lR OPTIMIZER) : 0-20 Level Adjustable • White Balance : AUTO / AUTOext / AWC-SET /
MANUAL 5,OOOK, 8,OOOK) Digital Noise Reduction : OFF / LOW / MIDDLE / HIGH • Mirror : MIRROR, FLIP • D-
ZOOM(EZOOM) : xl – x16 • Sharpness : 0-10 Level Adjustable • De-fog : OFF/ON • GAMMA Correction : r = 0.45 – 0.75 •
Lens Shading(LSC) : OFF / ON(O – 100% Level Adjustable) • Language : ENG / CHN / CHN(S) / JPN / KOR
Pan /Tilt / Rotate
Pan Range -175° – 175°
Tilt Range 0°- 67°
Rotate Range -177° – 177°
Envirometral
Operating Temperature -100C – 4500C (14°F – +122°F)
Operating Humidity 0% – 90%
Electrical
Power Source DC 12V, AC 24V
Power Consumption DC 12V/8W, AC 24V/8.3W
Mechanical
Dimensions 0.122mm x 103.4mm (4.8″ x 4.07′)
Weight 0.3kg (0.661b)

The post TC-D5532RX first appeared on BTCO.

]]> TC-T5532WRX https://www.btcolatam.com/producto/tc-t5532wrx/ Tue, 27 Jun 2023 19:09:01 +0000 https://www.btcolatam.com/?post_type=producto&p=11635

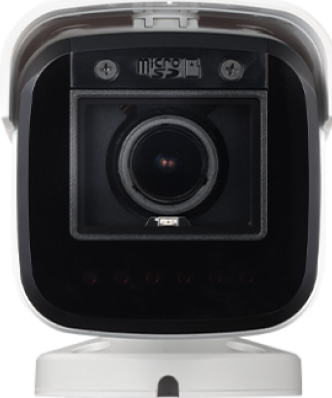

TC-T5532WRX

DirectCX 5MP IR Bullet Camera / NDAA Compliant

• SMP resolution
• True Wide dynamic range (WDR)
• Vari-focal Lens (f=3.Omm — 13.5mm)
• Motion Detection
• Vandal Proof / IP66 supports
• Day and night (ICR)
• De-fog
• Coaxial OSD Control

Video
Image 1/2.8” CMOS
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Frame Rate TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP,
30ips@2MP CVBS : NTSC / PAL(for previewing video)
Lens Type Motorized Vari-focal
Aperture Fl.4 — 3.2
Iris Control DC IRIS
Angular Field of View Wide : 910(H) 660(V) 1200(D) Tele : 310(H) 230(V) 38(D)Y
Min. Illumination COLOR : 0.13 Lux @ Fl.4 B/w : O Lux (IR LED ON)
S/N Ratio More than 50dB
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30,1/25Sec – 1/30000Sec) / Anti-Flicker
Day and Night Yes (ICR)
IR Distance (LEDs) 30m / 98.4 ft (4ea)
Video Out 1 HD BNC (Signal Switchable)
Function
functions via OSD menu control • AGC : O – 10 Level Adjustable • Brightness : O – 20 Level Adjustable • Sens-UP : OFF / x2 – x32 • WDR(Wide Dynamic
Range) : OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available Backlight Compensation(BLC) : OFF/ON HLC
: 1 – 20 Level Adjustable (ALL DAY/NIGHT ONLY) • ACE(D-WDR/ATR-EX) : OFF / LOW / MIDDLE / HIGH • Motion
Detection : OFF/ON (4 Zone) • Privacy Masking : OFF/ON (24 Zone) BOX:16 POLYGON:8 • Day & Night
Color/B&W/EXTERN • Smart-lR(lR OPTIMIZER) : 0-20 Level Adjustable • White Balance : AUTO / AUTOext / AWC-SET /
MANUAL (3,OOOK, 5,OOOK, 8,OOOK) • Digital Noise Reduction : OFF / LOW / MIDDLE / HIGH • Mirror : MIRROR, FLIP • D-
ZOOM(EZOOM) : xl – x16 • Sharpness : 0-10 Level Adjustable • De-fog : OFF/ON • GAMMA Correction : r 0.45 – 0.75 •
Lens Shading(LSC) : OFF / ON(O -100% Level Adjustable) Language : ENG / CHN / CHN(S) / JPN / KOR
 ENVIRONMENTAL
Environmetal  IK10
Outdoor Ready IP67Y
Operating Temperature -10°C – +55°C (14°F- +13°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source DC 12V, AC 24V
Power Consumption DC12V/8W, AC 24V/ 8.3W
MECHANICAL
Dimensions (W x H) 80mm X 75mm X 237mm(3.15” x 2.95” x 9.33”)
Weight 0.87kg (1.921 b)

The post TC-T5532WRX first appeared on BTCO.

]]> DC-V4212XJ https://www.btcolatam.com/producto/dc-v4212xj/ Thu, 15 Jun 2023 04:30:18 +0000 https://www.btcolatam.com/?post_type=producto&p=11508

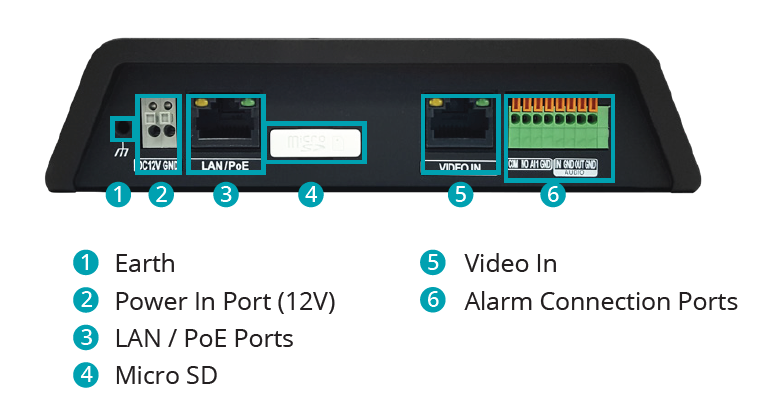

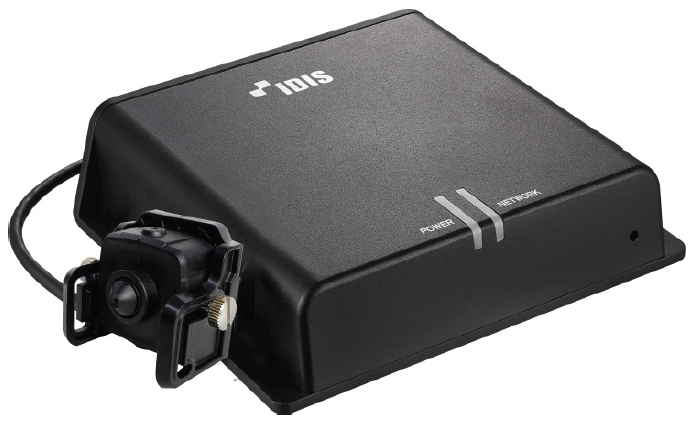

DC-V4212XJ

2M Modular Covert Camera

  • Easy Installation with DirectIP NVR
    • Full HD (1080p) Resolution
    • Fixed-focal Lens (f = 4.3 mm)
    • micro SD / SDHC / SDXC
    • Two-way Audio
    • Alarm In / Out
    • PoE (IEEE 802.3af Class 4)
    • True Wide Dynamic Range (WDR)
    • Supports ONVIF
Video
Image Sensor 1/2.8″ SONY CMOS Sensor
Max. Resolution 1920 x 1080
Scanning Mode Progressive Scan
Lens Type Fixed-focal Board type
Focal Length f=4.3mm
Aperture F = 2.0
Iris Control Fixed IRIS
Angular Field of View 81.6º(H), 42.3º(V), 99º(D)
Connector for Camera Module RJ45
Cable Length for Camera Module 30 m
Min. Illumination COLOR : 0.1 lux
B/W : 0.01 lux
Dynamic Range 120 dB (True WDR)
Day and Night Electrical
IR Distance (LEDs) –
Image Setting Sharpness, 3DNR, Exposure
Digital Noise Reduction Low / Normal / High
Backlight Compensation OFF / BLC / WDR / HLC
Mirroring / Pivot Horizontal / Vertical / Pivot
De-fog –
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out –
Network
Video Compression H.264 (MP), M-JPEG, H.265
Intelligent Codec Supported
Bitrate Control H.264 – CBR / VBR, H.265 – CBR / VBR
Audio Compression G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF
Max. Frame Rate 30ips : 1920 x 1080 (WDR)
Supported Resolution 1920 x 1080, 1280 x 720, 640 x 360, 352 x 240
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS,
Upnp
Security SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTS Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio In/ Out 1 / 1
Alarm In / Out 1 / 1
ENVIRONMENTAL
Vandal Proof Casing –
Outdoor Ready –
Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F)*Starting Up at Above 0°C (32°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source 12VDC, PoE IEEE 802.3at (Class 4)
Power Consumption 12V=, 0.42A, 5.04W
PoE, IEEE 802.3at(Class 4), 6.3W
Approval FCC, CE, KC
MECHANICAL

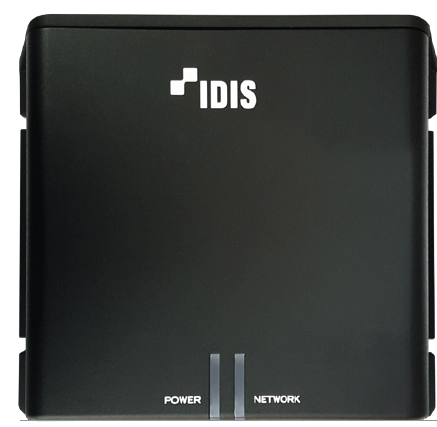

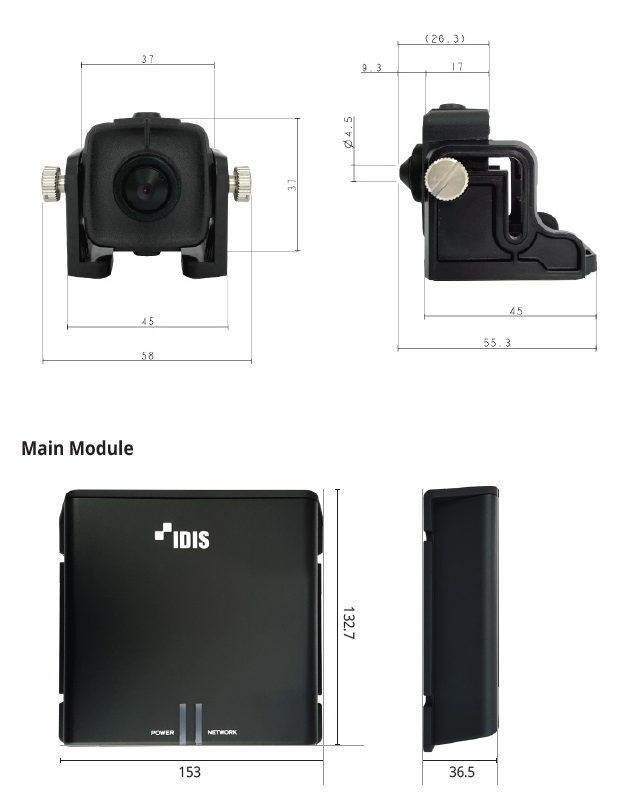

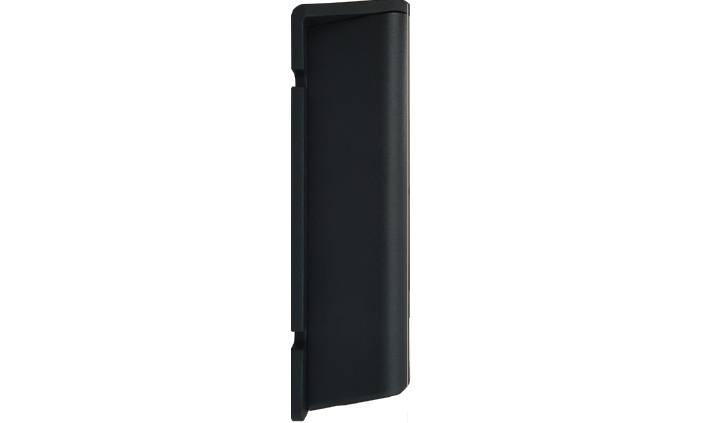

Dimensions – Main module 153mm x 36.5mm x 132.7mm ( 6.02” x 1.44” x 5.22”)
Dimensions – Camera module Body Only : 37(W) x 37(H) x 30.5(D) mm
With Bracket : 58(W) x 45(H) x 59.5(D) mm

The post DC-V4212XJ first appeared on BTCO.

]]> DC-D4537HRXA https://www.btcolatam.com/producto/dc-d4537hrxa/ Thu, 15 Jun 2023 03:37:44 +0000 https://www.btcolatam.com/?post_type=producto&p=11502

DC-D4537HRXA

H.265 5M Al I|R Dome Camera/ NDAA Compliance

  • 5MP (2592×1944) resolution
  • Day and night (ICR)
  • H.265 and Intelligent Codec
  • 1DIS Deep-Learning Analytics (IDLA)
  • IRLED (Distance : 30 m / 98.4 ft)
  • True wide dynamic range (WDR)
  • Remote Motorized Focus and Zoom
  • 1K10, IP67
Video
Image Sensor 1/2.8
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length 2.7 -13.5mm
Aperture Fl.4 – 3,2
Iris Control DC Iris
Angular Field of View Wide : 101.20(H) 72.50(V) 137.40(D), Tele : 30.40(H) 22.80(V) 38(D)
Min. Illumination COLOR : 0.15 lux (O F1.4, B/W : O lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 40m / 131.2 ft (Gea)
Image Setting Exposure, White Balance,Self-Adjusting Video Mode( Sharpness,Contrast,Colors,Brightness,control)
Mirroring / Pivot Horizontal / Vertical / Pivot
De-fog Yes
Privacy Masking 8 zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face
Detection
Pan/Tilt/Rotate
Pan Range -175° –  175°
Tilt Range 0° – 64°
Roatet Range -177°  –  177°
NETWORK
Video Compression H.265, H.264 (MP) M-JPEG
Intelligent Codec Yes
Bibrate Control H.265 – CBR / VBR, H.264 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF
Max. Frame Rate 4:3 mode:  30ips: 2592 x 1944(WDR), 16:9 mode :30ips : 2592 x 1456(WDR)
Supported Resolution 4:3 : 2592×1944, 1920×1440, 1280×960 x 640×480, 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP,
SMTP, FEN, mDNS, UPNP, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer
(NLTSrec)		 Yes (Up to 60MB)
Edge Storage micro SD / SDHC / SDXC, Smart Failover (Up to 512GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face
Detection
Event Notification

Audio Alarm

 Remote S/W, Email (With Image)

Yes
Audio in / Out    1/1
Alarm In / Out  1/1
 ENVIRONMENTAL
Environmetal  IK10
Outdoor Ready IP67, Heater
Operating Temperature -40°C ~ 55°C(-40°F ~ 131°F) (TBD)
*Starting Up at Above -20°C (-4°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source PoE (IEEE 802.3af Class 3)
Power Consumption 12V=, 1.1A, 13.2, POE, IEEE 802.3af(Class 3), 10W
Approval FCC, CE, KC
MECHANICAL
Dimensions (W x H)0 155 x 104.4mm(06.1” x 4.11″)
Weight 1Kg(2.2lb)

The post DC-D4537HRXA first appeared on BTCO.

]]> DC-D4537RXA https://www.btcolatam.com/producto/dc-d4537rxa/ Thu, 15 Jun 2023 01:05:37 +0000 https://www.btcolatam.com/?post_type=producto&p=11496

DC-D4537RXA

H.265 SM Al IR Dome Camera / NDAA Compliance

• 5MP (2592×1944) resolution * IR
• Day and night (ICR)
•H.265 and Intelligent Codec
• IDIS Deep-Learning Analytics (IDLA)
• IR LED (Distance : 30 m / 98.4 ft)
• True wide dynamic range (WDR)
• Remote Motorized Focus and Zoom
• Supports ONVIF
• micro SD/SDHC/SDXC
• Easy installation with Direct|P NVR
• PoE (IEEE 802.3af Class 3)

Video
Image 1/2.8
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length 2.7 –13.5mm
Aperture Fl.4- 3.2
Iris Control DC Iris
Angular Field of View Wide : 101.20(H) 72.50(V) 137.40(D), Tele : 30.40(H) 22.80(V) 38(D)
Min. Illumination COLOR: 0.15 lux @ F1.4, B/W : O lux (IR LED ON)
Dynamic Range 120 dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 – 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 40m / 131.2 ft (Sea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode (Sharpness,Contrast, Colors, Brightness Control)
Mirroring / Pivot / Pivot Horizontal / Vertical / Pivot
De-fog Yes
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
PAN / TILT / ROTATE
Pan Range -175° – 175°
Tilt Range 0° – 64°
Rotate Range -177°-177°
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Yes
Bibrate Control H.265 – CBR / VBR, H.264 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
Supported Resolution 1920 x 1080, 1280 x 720, 640 x 360, 352 x 240
IP Camera Protocol DirectIP 2.0, ONVIF
Max. Frame Rate 4:3 mode: : 2592 x 1944(WDR), 16:9 mode : : 2592 x 1456(WDR)
Supported Resolution  4:3 : 2592×1944, 1920×1440, 1280x960x 640×480, 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP,SMTP, FEN, MDNS, uPNP, SNMPv2
Segurity SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS
Ethernet RJ45 (10/100/1000BASE-T)
Recording Session Buffer (NLTS Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover ( Up to 512GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, FaceDetection
Event Notification Remote S/W, Email (with image)
Audio Alarm Yes
Audio in / Out 1(Built in MIC 1/1
Alarm In / Out                          1/1
Environmetal
Operating Temperature  –10*C – 50*C (14% – 122%), Starting up at above 0°C(32°F)
Operating Humidity 0%- 90%
Electrical
Power Source POE (IEEE 802.3af Class 3)
Power Consumption 12V=, 1A, 12W, PoE, IEEE 802.3af(Class 3), 9.5W
Approval FCC, CE, KC
Mechanical
Dimensions (W x H) 122 x 103.4mMm(@4.8” x 4.07”)
Weight o.35Kg (0.77lb)

The post DC-D4537RXA first appeared on BTCO.

]]> DC-S6286HRXL-A https://www.btcolatam.com/producto/dc-s6286hrxl-a/ Thu, 15 Jun 2023 00:00:31 +0000 https://www.btcolatam.com/?post_type=producto&p=11489

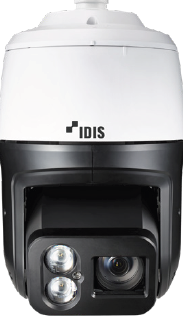

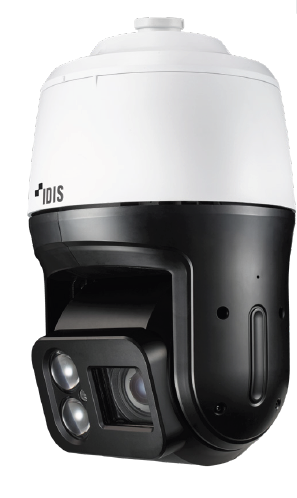

DC-S6286HRXL-A

2MP 36x Lightmaster IR PTZ Camera

• Easy Installation with DirectIP NVR
• Full HD (1080p) Resolution
• AF Optical Zoom Lens (f = 6 – 216 mm), 36x zoom
• micro SD / SDHC / SDXC, Smart Failover (Up to 256GB)
• Two-way audio
• Alarm In / Out
• IK10 / IP66 supports
DIMENSIONS
• Built-in Heater
• High-PoE, 24V AC
• Day and Night (ICR)
• True Wide Dynamic Range (WDR)
• Digital image stabilization (DIS)
• 350 m / 1,148.2 ft (2ea)
• Supports ONVIF

VIDEO
Image Sensor 1/2″ CMOS
Max. Resolution 1920 x 1080
Scanning Mode Progressive Scan
Lens Type AF Zoom Lens
Focal Length f = 6 – 216 mm
Aperture F1.36 – 4.6
Iris Control DC Auto IRIS (HALL SENSOR)
Angular Field of View Wide : 57.36°(H), 33.12°(V), 65.18°(D)
Tele : 1.92°(H), 1.08°(V), 2.2°(D)
Min. Illumination Color : 0.02 Lux @ F1.36
B/W : 0 Lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night IR Cut Filter with Auto Switch
IR Distance (LEDs) 350 m / 1,148.2ft (2ea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode Sharpness,
Contrast, Colors, Brightness Control
Backlight Compensation On / Off
Mirroring / Pivot Horizontal / Vertical
Image Stabilizer Yes (EIS)
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm
Auto Tracking No
Video Out 1 Terminal Block
PAN / TILT / ROTATE
Pan Range 360° (Endless)
Pan Speed Pan: 0.02~180°/sec (preset 240°/sec)
Tilt Range 200° (-10~190°)
Tilt Speed Tilt: 0.02~180°/sec (preset 240°/sec)
Preset 256ea
NETWORK
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Supported
Bitrate Control H.264 – CBR / VBR, H.265 – CBR / VBR
IP Camera Protocol DirectIP 2.0, ONVIF
Max. Frame Rate 30ips : 1920 x 1080 (WDR)
Supported Resolution 1920 x 1080, 1280 x 720, 640 x 360, 352 x 240
Multi-video Streaming Quadruple Streaming
Network Protocols
DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP,
SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session
Buffer (NLTSrec) Yes (Up to 60MB)
Edge Storage micro SD / SDHC / SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Alarm In / Out 8/2
ENVIRONMENTAL
Vandal Proof Casing IK10
Outdoor Ready IP66, Heater
Operating Temperature -40°C ~ +55°C *Starting Up at Above -20°C (-4°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source 24VAC, PoE (75W)
Power Consumption
Heater / IR Off
24V~, 1.6A, 26.2W, 50/60Hz
High-PoE, 50-57V, 23.6W
Heater / IR On
24V~, 2.3A, 39.6W, 50/60Hz
High-PoE, 50-57V, 35.6W
Approvals FCC, CE(50130-4), KC
MECHANICAL

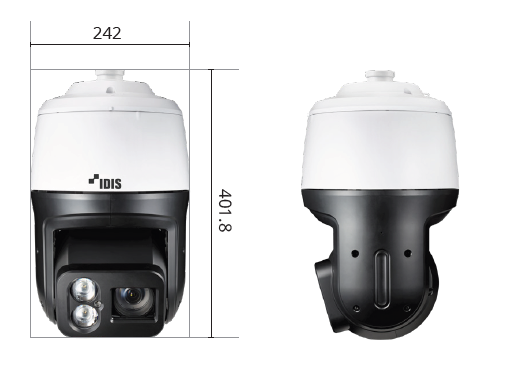

Dimensions Ø242 x 401.8 mm (Ø9.52″ x 15.82″)
Weight 6.7 kg (14.77 lb)

The post DC-S6286HRXL-A first appeared on BTCO.

]]> DC-T4537HRXA https://www.btcolatam.com/producto/dc-t4537hrxa/ Wed, 14 Jun 2023 22:51:56 +0000 https://www.btcolatam.com/?post_type=producto&p=11482

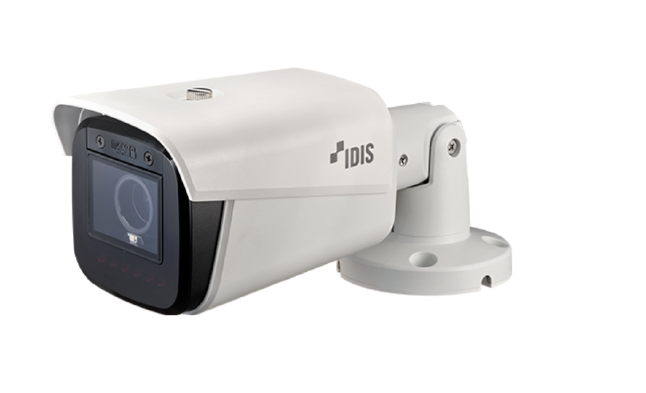

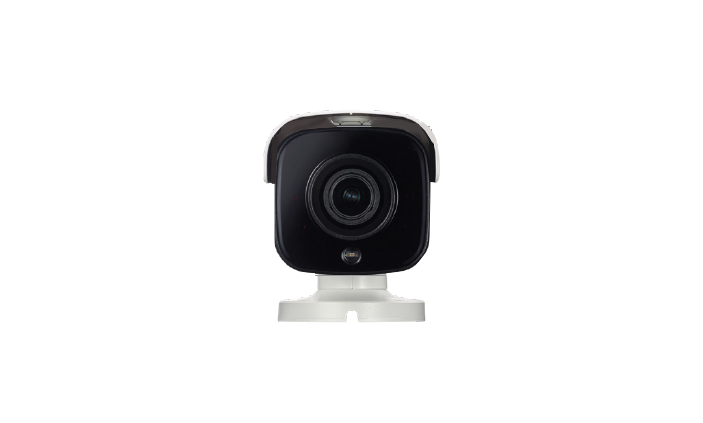

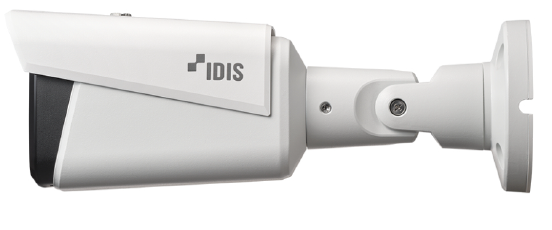

DC-T4537HRXA

H.265 5M Bullet Camera / NDAA Compliance

• 5MP (2592×1944) resolution
• Two-way audio
• Built-in heater
• IR LED (Distance : 40m / 131.2ft)
• IDIS Deep-Learning Analytics (IDLA)
• Motorized Vari-focal lens
• Alarm in / out
• Day and night (ICR)
• 3-axis mechanical design for installation
• Easy installation with DirectlP NVR
• micro SD/SDHC/SDXC
• IK10 / IP67 supports
• True wide dynamic range (WDR)
• PoE (IEEE 802.3af Class 3)
• Supports ONVIF

Video
Image Sensor 1/2.8​
Max. Resolution 2592×1944
Scanning Mode Progressive Scan
Lens Type Motorized Van-focal
Focal Length 2.7 13.5mm
Aperture Fl.4 F3.2
Iris Control DC Iris
Angular Field of View Wide:101.20( 72.60(V) 137.40(D), Tele 30.40(8) 22.80(V) 38(D)COLOR: 0.15 lux F1.4, 8/W 0 lux (IR LED ON)
Min. Illumination COLOR : 0.3 lux @ F1.5 B/W : 0 lux (IR LED ON)
Dynamic Range 120dB(True WDR)
Electronic Shutter Speed Auto/Manual (1/30 1/10,000), Ant Flicker, Slow Shutter (1/7.5,1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 40m/131.2 ft (6ea)
Image Setting Exposure,White Balance, Self Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Mirroring / Pivot Horizontal / Vertical / Pivot
De-fog yes
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
Network
Video Compression H.265,H.264 ( MP)M- JPEG
Intelligent Codec Yes
Bitrate Control H.265-CBR VBR, H.264-CBR/ VBR
Audio Compression            ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF
Max. Frame Rate 4:3 mode : 30i ps : 2592 x1944(WDR).16:9 mode : 30ips : 2592 x 1456(WDR)​
Supported Resolution 4:3: 2592X1944,192001440,12800960, 6400480,16:9: 259201456,1920×1080,12800720, 640×360​
Multi-video Streaming Quadruple Streaming
Network Protocols Di rectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP,  SMTP, FEN, mDNS, Upnp, SNMPV2​
Security   SSL Encryption, Multi-user Authority, IEEE 802.10, IP Filtering, HTTPS
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer  (NLTSrec) Yes (Up to 60MB)​
Edge Storage​
Remote Access Client DirectIP™ Mode : DirectIP NVR Connection Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100/1000BASE-T)
Recording Session Buffer (NLTS Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 512GB)​
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face
Detection
Event Notification Remote 51W, Email (with Image)  ​
Audio Alarm

Audio In/ Out

 Yes

1 / 1
Alarm In / Out 1 / 1
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP67, Heater
Operating Temperature -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source PoE (IEEE 802.3af Glass 3)
Power Consumption 128,14,12W, PoE, IEEE 802.3af(Class 3), 9.7W
Approval EGG, GE, KG​
Mechanical
Dimensions 89.3rnm X 89.3rnm X 277.6mm (3.22″ x 3.52″ 010.939″)
Weight 1.293kg (2.851b)

The post DC-T4537HRXA first appeared on BTCO.

]]> DC-T4831HRX https://www.btcolatam.com/producto/dc-t4831hrx/ Wed, 14 Jun 2023 22:01:56 +0000 https://www.btcolatam.com/?post_type=producto&p=11475

DC-T4831HRX

8M IR Bullet Camera with Heater

Easy Installation with DirectIP NVR
• 8MP (3840×2160) Resolution
• Motorized Vari-focal lens (f=2.7 – 13.5mm)
• micro SD / SDHC / SDXC
• Two-way Audio
• Alarm In / Out
• IK10 / IP67 Supports
• Built-in Heater
• PoE (IEEE 802.3af Class 3), 12V DC
• Day and Night (ICR)
• True Wide Dynamic Range (WDR)
• IR LED (Distance : 40m/131.2ft)
• 3-axis Mechanical Design for Installation
• Supports ONVIF
• NDAA Compliance

Video
Image 1/2.8” CMOS
Max. Resolution 3840 x 2160
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length f=2.7-13.5mm
Aperture F1.8 – 3.32
Iris Control DC IRIS
Angular Field of View Wide : 110.6º(H) 57.3º(V) 134.1º(D)
Tele : 32.6º(H) 18.3º(V) 37.4(D)
Min. Illumination Color : 0.2 lux @ F1.8
B/W : 0 lux (IR LED On)
Dynamic Range 120dB(True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR Cut Filter with Auto Switch
IR Distance (LEDs) 40m/131.2ft (6ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation On / Off
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer –
De-fog –
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out –
NETWORK
Video Compression H.265, H.264 (MP) M-JPEG
Intelligent Codec Supported
Bibrate Control H.265 – VBR / CBR
H.264 – VBR / CBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate 30ips : 3840 x 2160
15ips : 3840 x 2160(WDR)
Supported Resolution 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer
(NLTSrec)		 Yes (Up to 60MB)
Edge Storage micro SD / SDHC / SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (With Image)
Audio in / Out    1/1
Alarm In / Out  1/1
 ENVIRONMENTAL
Environmetal  IK10
Outdoor Ready IP67, Heater
Operating Temperature -40°C ~ +55°C (-40°F ~ +131°F)
*Starting up at above -20°C (-4°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source PoE (IEEE 802.3af Class 3), DC12V
Power Consumption 12V=, 1.1A, 13.2W
PoE, IEEE 802.3af(Class 3), 11.7W
Approval FCC, CE, KC
MECHANICAL
Dimensions (W x H) 80mm X 75mm X 237mm(3.15” x 2.95” x 9.33”)
Weight 1.006kg
VIDEO
Image 1/2.8” CMOS
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length f=2.7-13.5mm
Aperture F1.8 – 3.32
Iris Control DC IRIS
Angular Field of View Wide : 110.6º(H) 57.3º(V) 134.1º(D)Tele : 32.6º(H) 18.3º(V) 37.4(D)
Min. Illumination Color : 0.2 lux @ F1.8B/W : 0 lux (IR LED On)
Dynamic Range 120dB(True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR Cut Filter with Auto Switch
IR Distance (LEDs) 40m/131.2ft (6ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation On / Off
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer –
De-fog –
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out –
NETWORK
Video Compression H.265, H.264 (MP) M-JPEG
Intelligent Codec Supported
Bibrate Control H.265 – VBR / CBR
H.264 – VBR / CBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate 30ips : 3840 x 2160
15ips : 3840 x 2160(WDR)
Supported Resolution  3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
Segurity SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTS Yes (Up to 60MB)
Edge Storage micro SD / SDHC / SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (With Image)
Audio In / Out 1 / 1
Alarm In / Out 1 / 1
ENVIRONMENTAL
Vandal Proof Casing IK10
Outdoor Ready IP67, Heater
Operating Temperature -40°C ~ +55°C (-40°F ~ +131°F)
*Starting up at above -20°C (-4°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source PoE (IEEE 802.3af Class 3), DC12V
Power Consumption 12V=, 1.1A, 13.2W
PoE, IEEE 802.3af(Class 3), 11.7W
Approval FCC, CE, KC
MECHANICAL
Dimensions (W x H) 80mm X 75mm X 237mm(3.15” x 2.95” x 9.33”)
Weight 1.006kg

The post DC-T4831HRX first appeared on BTCO.

]]> DC-T4811WRX https://www.btcolatam.com/producto/dc-t4811wrx/ Wed, 14 Jun 2023 20:58:16 +0000 https://www.btcolatam.com/?post_type=producto&p=11327

DC-T4811WRX

8M IR Bullet Camera

Easy Installation with DirectIP NVR
• 8MP (3840×2160) Resolution
• Fixed-focal Lens (f=2.8mm)
• micro SD / SDHC / SDXC
• Two-way Audio
• Alarm In / Out
• IK10 / IP67 Supports
• PoE (IEEE 802.3af Class 3)
• Day and Night (ICR)
• True Wide Dynamic Range (WDR)
• IR LED (Distance : 30m / 98.4ft)
• 3-axis Mechanical Design for Installation
• Supports ONVIF
• NDAA Compliance

Video
Image 1/2.8″ CMOS
Max. Resolution 3840 x 2160
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length f=2.8mm
Aperture F 2.0
Iris Control Fixed Iris
Angular Field of View 104.8º (H) 76.9º(V) 130º(D)
Min. Illumination Color: 0.2 lux @ F2.0
B/W : 0 lux (IR LED On)
Dynamic Range 120dB(True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR Cut Filter with Auto Switch
IR Distance (LEDs) 30m / 98.4ft (4 ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation On / Off
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer –
De-fog –
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out –
NETWORK
Video Compression H.265, H.264 (MP) M-JPEG
Intelligent Codec Supported
Bibrate Control H.265 – VBR / CBR
H.264 – VBR / CBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate 30ips : 3840 x 2160
15ips : 3840 x 2160(WDR)
Supported Resolution 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer
(NLTSrec)		 Yes (Up to 60MB)
Edge Storage micro SD / SDHC / SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (With Image)
Audio in / Out    1/1
Alarm In / Out  1/1
 ENVIRONMENTAL
Environmetal  IK10
Outdoor Ready IP67
Operating Temperature -20°C ~ +55°C(-22°F ~ +131°F) (TBD)
*Starting Up at Above 0°C (32°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source PoE (IEEE 802.3af Class 3)
Power Consumption PoE, (IEEE 802.3af Class 3)
Approval FCC, CE, KC
MECHANICAL
Dimensions (W x H) 75mm x 70mm x 197mm (2.95” x 2.75” x 7.75”)
Weight 0.655 kg (1.44lb)

The post DC-T4811WRX first appeared on BTCO.

]]>
