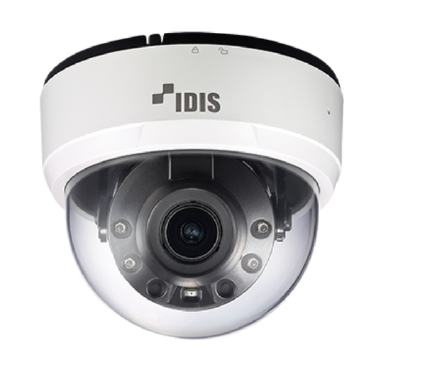

TC-T5532WRX

DirectCX 5MP IR Dome Camera / NDAA Compliant

• 5MP resolution
• True Wide dynamic range (WDR)
• Vari-focal Lens (f=3.O mm – 13.5 mm)
• Motion Detection
• Coaxial OSD Control
• Day and night (ICR)
• De-fog

Video
Image 1/2.8” CMOS
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Frame Rate TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP,
30ips@2MP CVBS : NTSC / PAL(for previewing video)
Lens Type Motorized Vari-focal
Focal Length 3.0mm — 13.5mm
Aperture Fl.4 — 3.2
Iris Control DC IRIS
Angular Field of View Wide : 910(H) 660(V) 1200(D) Tele : 310(H) 230(V) 38(D)Y
Min. Illumination COLOR : 0.13 Lux @ Fl.4 B/w : O Lux (IR LED ON)
S/N Ratio More than 50dB
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30,1/25Sec – 1/30000Sec) / Anti-Flicker
Day and Night Yes (ICR)
IR Distance (LEDs) 30m / 98.4 ft (4ea)
Video Out 1 HD BNC (Signal Switchable)
Function
functions via OSD menu control • AGC : O – 10 Level Adjustable • Brightness : O – 20 Level Adjustable • Sens-UP : OFF / x? – x32 • WDR(Wide Dynamic
Range) : OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available • Backlight Compensation(BLC) : OFF/ON • HLC
: 1 – 20 Level Adjustable (ALL DAY/NIGHT ONLY) ACE(D-WDR/ATR-EX) : OFF / LOW / MIDDLE / HIGH Motion
Detection : OFF/ON (4 zone) • Privacy Masking : OFF/ON (24 zone) BOX:16 POLYGON:8 • Day Night :
Color/B&W/EXTERN • Smart-lR(lR OPTIMIZER) : 0-20 Level Adjustable • White Balance : AUTO / AUTOext / AWC-SET /
MANUAL 5,OOOK, 8,OOOK) Digital Noise Reduction : OFF / LOW / MIDDLE / HIGH • Mirror : MIRROR, FLIP • D-
ZOOM(EZOOM) : xl – x16 • Sharpness : 0-10 Level Adjustable • De-fog : OFF/ON • GAMMA Correction : r = 0.45 – 0.75 •
Lens Shading(LSC) : OFF / ON(O – 100% Level Adjustable) • Language : ENG / CHN / CHN(S) / JPN / KOR
Pan /Tilt / Rotate
Pan Range -175° – 175°
Tilt Range 0°- 67°
Rotate Range -177° – 177°
Envirometral
Operating Temperature -100C – 4500C (14°F – +122°F)
Operating Humidity 0% – 90%
Electrical
Power Source DC 12V, AC 24V
Power Consumption DC 12V/8W, AC 24V/8.3W
Mechanical

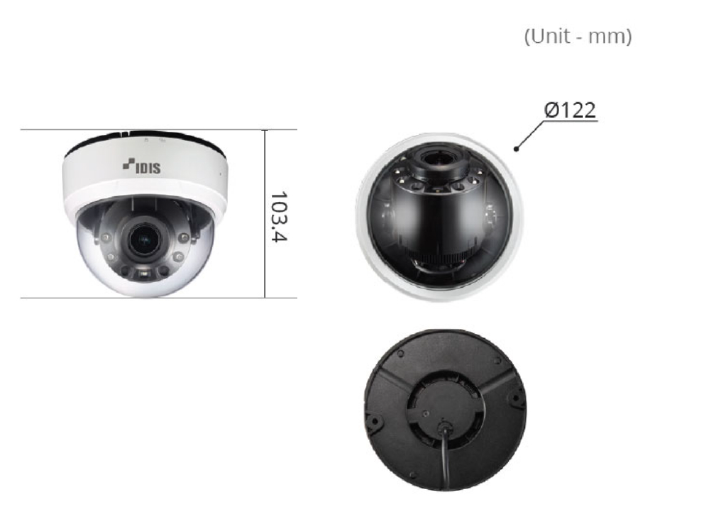

Dimensions 0.122mm x 103.4mm (4.8″ x 4.07′)
Weight 0.3kg (0.661b)
