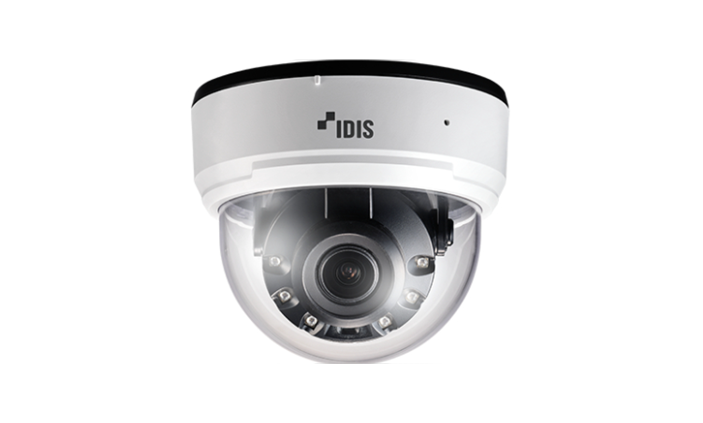

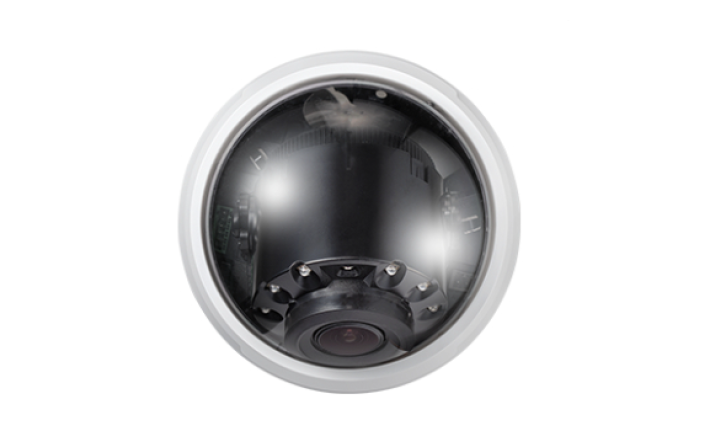

DC-D4537RXA

H.265 SM Al IR Dome Camera / NDAA Compliance

• 5MP (2592×1944) resolution * IR
• Day and night (ICR)
•H.265 and Intelligent Codec
• IDIS Deep-Learning Analytics (IDLA)
• IR LED (Distance : 30 m / 98.4 ft)
• True wide dynamic range (WDR)
• Remote Motorized Focus and Zoom
• Supports ONVIF
• micro SD/SDHC/SDXC
• Easy installation with Direct|P NVR
• PoE (IEEE 802.3af Class 3)

Video
Image 1/2.8
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length 2.7 –13.5mm
Aperture Fl.4- 3.2
Iris Control DC Iris
Angular Field of View Wide : 101.20(H) 72.50(V) 137.40(D), Tele : 30.40(H) 22.80(V) 38(D)
Min. Illumination COLOR: 0.15 lux @ F1.4, B/W : O lux (IR LED ON)
Dynamic Range 120 dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 – 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 40m / 131.2 ft (Sea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode (Sharpness,Contrast, Colors, Brightness Control)
Mirroring / Pivot / Pivot Horizontal / Vertical / Pivot
De-fog Yes
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
PAN / TILT / ROTATE
Pan Range -175° – 175°
Tilt Range 0° – 64°
Rotate Range -177°-177°
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Yes
Bibrate Control H.265 – CBR / VBR, H.264 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
Supported Resolution 1920 x 1080, 1280 x 720, 640 x 360, 352 x 240
IP Camera Protocol DirectIP 2.0, ONVIF
Max. Frame Rate 4:3 mode: : 2592 x 1944(WDR), 16:9 mode : : 2592 x 1456(WDR)
Supported Resolution  4:3 : 2592×1944, 1920×1440, 1280x960x 640×480, 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP,SMTP, FEN, MDNS, uPNP, SNMPv2
Segurity SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS
Ethernet RJ45 (10/100/1000BASE-T)
Recording Session Buffer (NLTS Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover ( Up to 512GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, FaceDetection
Event Notification Remote S/W, Email (with image)
Audio Alarm Yes
Audio in / Out 1(Built in MIC 1/1
Alarm In / Out                          1/1
Environmetal
Operating Temperature  –10*C – 50*C (14% – 122%), Starting up at above 0°C(32°F)
Operating Humidity 0%- 90%
Electrical
Power Source POE (IEEE 802.3af Class 3)
Power Consumption 12V=, 1A, 12W, PoE, IEEE 802.3af(Class 3), 9.5W
Approval FCC, CE, KC
Mechanical

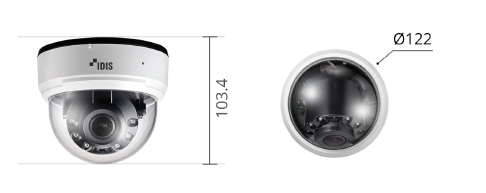

Dimensions (W x H) 122 x 103.4mMm(@4.8” x 4.07”)
Weight o.35Kg (0.77lb)
