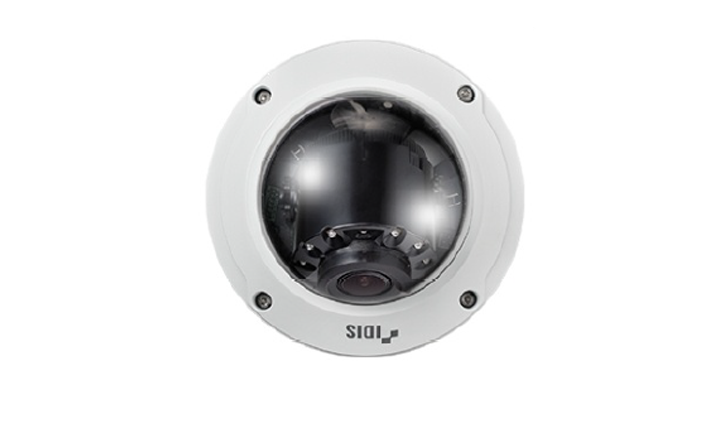

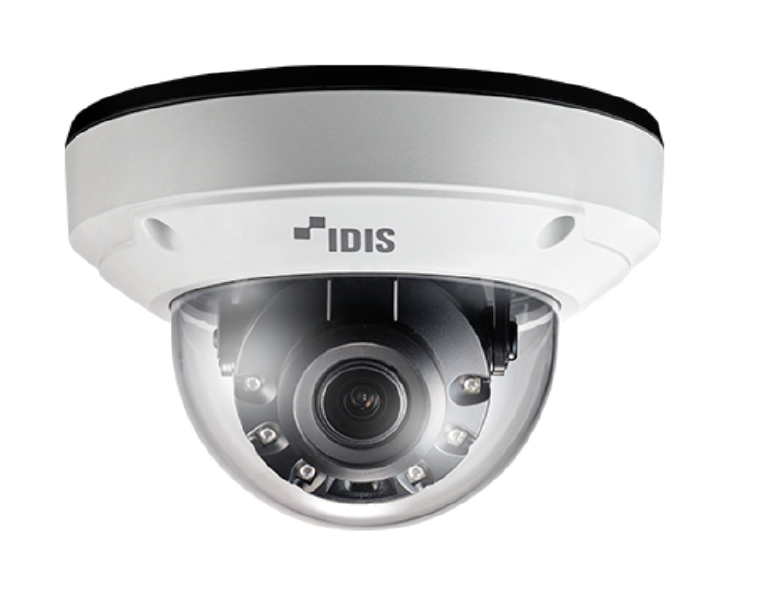

TC-D5532WRX

DirectCX 5MP Vandal-Resistant IR Dome Camera / NDAA Compliant

• 5MP resolution
• True Wide dynamic range (WDR)
• Vari-focal Lens (f=3.Omm – 13.5mm)
• Motion Detection
• Vandal Proof / IP66 supports
• Day and night (ICR)
• De-fog
• Coaxial OSD Control

Video
Image Sensor 1/2.8
Effective pixels 2616 x 1964
Total pixels
Max. Resolution 2592 X 1944
Scanning Mode Progressive Scan
Frame Rate TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
C[removed] N TSC / PAL(for previewing video)
Lens Type Motorized Vari-focal
Focal Length f = 3.0mm -13.5mm
IRIS Control DC IRIS
Angular Field of View Wide : 910(H) 660(V) 1200(D)
Tele : 310(H) 230(V) 380(D)
Pan / Tilt Range Pan: -175° – 175°
tilt: o° – 67° , Rotate: -177° – 177°
Min. illumination COLOR : 0.13 Lux @ Fl.4
B/w : O Lux (IR LED ON)
S/N Ratio More than 50dB
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed UTO / Manual (1/30,1 /25 sec – 1/30000Sec) / FLICKER
Day/Night YES(ICR)
IR DISTANCE (LEDs) 30m / 98.4 ft(4ea)I
Video Out 1 HD BNC (Signal Switchable)
function
AGC O — 10 Level Adjustable
Brightness O – 20 Level Adjustable
Sens-UP OFF / – x32
WDR(Wide Dynamic Range) OFF / FRAME / LINE (LOW, MIDDLE, HIGH)
ROI Mode Available
Backlight Compensation(BLC) OFF/ONI
HLC OFF / LOW / MIDDLE / HIGH
Motion Detection OFF/ON (4 zone)
Privacy Masking FF/ON (24 zone) BOX:16 POLYGON:8
Day & Night Color/B&W/EXTERN
Smart -IR(IR OPTIMIZER) 0-20 Level Adjustable
White Balance AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K)
Digital Noise Reduction OFF/LOW/MIDDLE/HIGH
Mirror MIRROR,FLIP
D-ZOOM(EZOOM) xl – x16
Sharpness 0-10 Level Adjustable
De-fog OFF / ON
Lens Shading(LSC) OFF / ON (o -100% Level Adjustable)
Language ENG / CHN / CHN(S) / JPN / KOR
Menu Control OSD button, TVI / AHD coaxial protocol
Environmental
Out-door Ready IP67, IKIO
Storage Temperature -20°c – 60°c (-4°F- 140°F) (Humidity : 0% – 95%)
Operating Temperature -10°c – 55°c (-14°F- 131°F) (Humidity : 0% – 90%)
Electrical
Power Source DC 12V, AC 24V
Power Consumption DC 12V/8W, AC 24V/ 8.3W
MECHANICAL

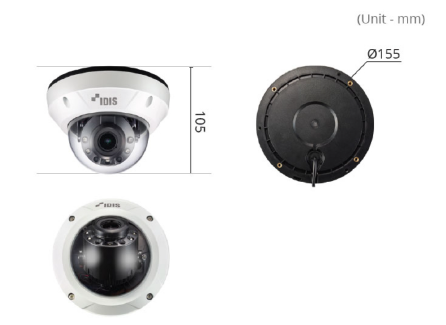

Dimensions O x H 0155mm x 105mm (6.1″ x 4.13″)
