DC-T4811WRX

8M IR Bullet Camera

Easy Installation with DirectIP NVR
• 8MP (3840×2160) Resolution
• Fixed-focal Lens (f=2.8mm)
• micro SD / SDHC / SDXC
• Two-way Audio
• Alarm In / Out
• IK10 / IP67 Supports
• PoE (IEEE 802.3af Class 3)
• Day and Night (ICR)
• True Wide Dynamic Range (WDR)
• IR LED (Distance : 30m / 98.4ft)
• 3-axis Mechanical Design for Installation
• Supports ONVIF
• NDAA Compliance

Video
Image 1/2.8″ CMOS
Max. Resolution 3840 x 2160
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length f=2.8mm
Aperture F 2.0
Iris Control Fixed Iris
Angular Field of View 104.8º (H) 76.9º(V) 130º(D)
Min. Illumination Color: 0.2 lux @ F2.0
B/W : 0 lux (IR LED On)
Dynamic Range 120dB(True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR Cut Filter with Auto Switch
IR Distance (LEDs) 30m / 98.4ft (4 ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation On / Off
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer –
De-fog –
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out –
NETWORK
Video Compression H.265, H.264 (MP) M-JPEG
Intelligent Codec Supported
Bibrate Control H.265 – VBR / CBR
H.264 – VBR / CBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate 30ips : 3840 x 2160
15ips : 3840 x 2160(WDR)
Supported Resolution 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer
(NLTSrec)		 Yes (Up to 60MB)
Edge Storage micro SD / SDHC / SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (With Image)
Audio in / Out    1/1
Alarm In / Out  1/1
 ENVIRONMENTAL
Environmetal  IK10
Outdoor Ready IP67
Operating Temperature -20°C ~ +55°C(-22°F ~ +131°F) (TBD)
*Starting Up at Above 0°C (32°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source PoE (IEEE 802.3af Class 3)
Power Consumption PoE, (IEEE 802.3af Class 3)
Approval FCC, CE, KC
MECHANICAL

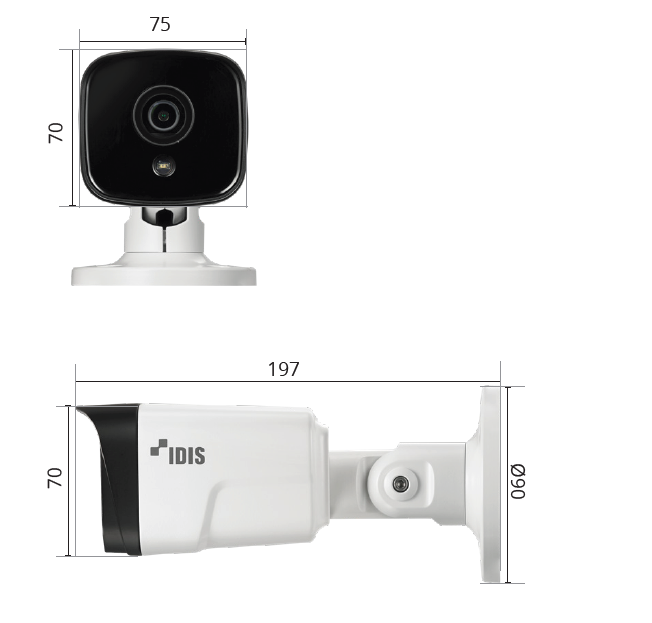

Dimensions (W x H) 75mm x 70mm x 197mm (2.95” x 2.75” x 7.75”)
Weight 0.655 kg (1.44lb)
