DC-D4537HRXA

H.265 5M Al I|R Dome Camera/ NDAA Compliance

  • 5MP (2592×1944) resolution
  • Day and night (ICR)
  • H.265 and Intelligent Codec
  • 1DIS Deep-Learning Analytics (IDLA)
  • IRLED (Distance : 30 m / 98.4 ft)
  • True wide dynamic range (WDR)
  • Remote Motorized Focus and Zoom
  • 1K10, IP67
Video
Image Sensor 1/2.8
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length 2.7 -13.5mm
Aperture Fl.4 – 3,2
Iris Control DC Iris
Angular Field of View Wide : 101.20(H) 72.50(V) 137.40(D), Tele : 30.40(H) 22.80(V) 38(D)
Min. Illumination COLOR : 0.15 lux (O F1.4, B/W : O lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 40m / 131.2 ft (Gea)
Image Setting Exposure, White Balance,Self-Adjusting Video Mode( Sharpness,Contrast,Colors,Brightness,control)
Mirroring / Pivot Horizontal / Vertical / Pivot
De-fog Yes
Privacy Masking 8 zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face
Detection
Pan/Tilt/Rotate
Pan Range -175° –  175°
Tilt Range 0° – 64°
Roatet Range -177°  –  177°
NETWORK
Video Compression H.265, H.264 (MP) M-JPEG
Intelligent Codec Yes
Bibrate Control H.265 – CBR / VBR, H.264 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF
Max. Frame Rate 4:3 mode:  30ips: 2592 x 1944(WDR), 16:9 mode :30ips : 2592 x 1456(WDR)
Supported Resolution 4:3 : 2592×1944, 1920×1440, 1280×960 x 640×480, 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP,
SMTP, FEN, mDNS, UPNP, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer
(NLTSrec)		 Yes (Up to 60MB)
Edge Storage micro SD / SDHC / SDXC, Smart Failover (Up to 512GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face
Detection
Event Notification

Audio Alarm

 Remote S/W, Email (With Image)

Yes
Audio in / Out    1/1
Alarm In / Out  1/1
 ENVIRONMENTAL
Environmetal  IK10
Outdoor Ready IP67, Heater
Operating Temperature -40°C ~ 55°C(-40°F ~ 131°F) (TBD)
*Starting Up at Above -20°C (-4°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source PoE (IEEE 802.3af Class 3)
Power Consumption 12V=, 1.1A, 13.2, POE, IEEE 802.3af(Class 3), 10W
Approval FCC, CE, KC
MECHANICAL

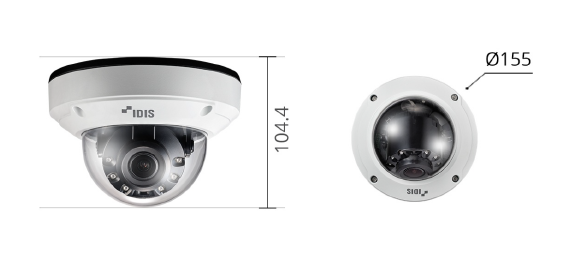

Dimensions (W x H)0 155 x 104.4mm(06.1” x 4.11″)
Weight 1Kg(2.2lb)
