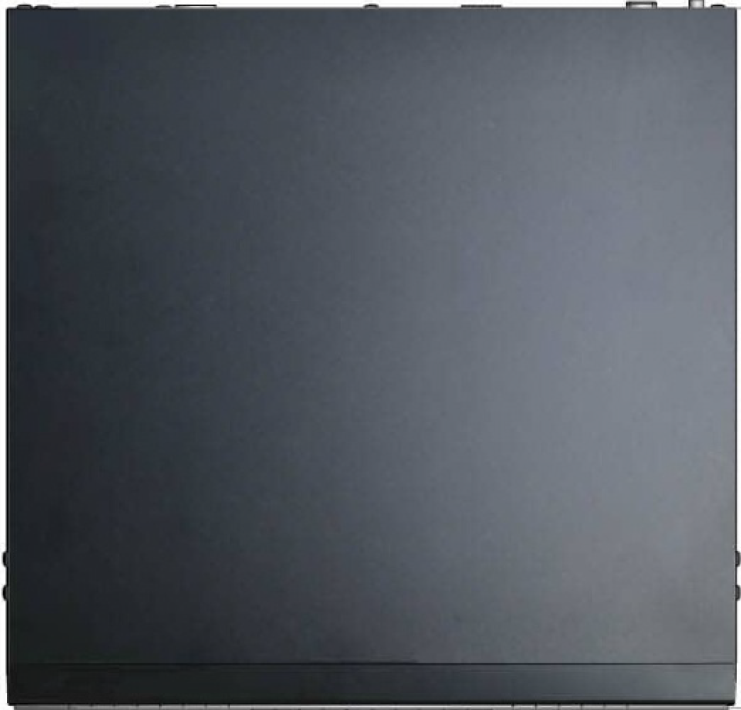

DV-3200

Alin the Box / NDAA Compliant

  • Specialized in DirectIP™ NVR
  • Supports Object Detection
  • Supports Line Crossing
  • Supports 4ch IP Camera
  • Supports Intrusion
  • Supports Face Detection
  • Supports the most advanced IDIS Deep-Learning Analytics (IDLA)
  • Supports Loitering
  • Generating real-time event notifications with high accurancy
General
Supported Service IDIS Solution Suite IDLA VA Service
Supported Version Version 3.6.4 or Higher
Operating System Microsoft® Windows 10 lot Enterprise
Processor Intel® I5-10500, 3.1GHz
Memory DDR4 PC- 25600, 16GB
Channels available for Analytics Up to 64ch in condition of 640×360@5ips video input
IDLA Processing Unit NVIDIA A2000, 12GB
Network
Network Connection GbE RJ-45 Ports (1000Base-T)
Interface
Video Outputs 2 HDMI 2.0
USB 6 (2 Front USB 2.0 + 4 Back (3 USB 3.0 TYPE-A + 1 TYPE-C))
Environmental
Operating Temperature O°C to 40°C (32°F to 104F°)
Operating Humidity 0% ~ 90%
Electrical
Power Input 100-240V-, 50/60 Hz, 6.0 – 3.0A
Power Consumtion 270W
Approval FCC,CE,CB,UL,PSE,KC
Mechanical
Dimensions (W x H x D ) 482.6mm x 88mm x 523.3mm (19″ x 3.5″ x 20.6″)
Weight
1.17 kg (2.58 lb)
