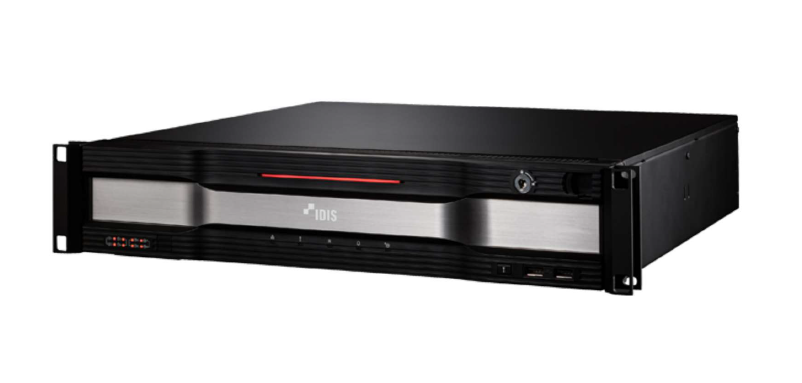

DR-8564D

DirectIP 8500 Series H.265 4K Recorder /NDAA Compliant

  •  Total incoming throughput 540Mbps
  • Supports UHD display
  • Supports RAID 1, 5,10
  • Supports third party cameras (Axis, Panasonic, ONVIF, etc)
  • Up to 1920ips UHD real-time recording
  • Up to 1080ips live display
  • Supports Redundant Power
Video
Video Inputs 64 IP Channels
Max. Incoming throughput 540Mbps
Supported Camera Direct IP, AXIS,PANASONIC,ONVIF
Video Outputs 2 HDMI
Display Resolution HDMI: 3840×2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display speed Up to 1080 ips
Digital Zoom x2 – x12
RECORDING
Max. Throughput 400Mbps, 1929 ips@UHD
Recording Resolution Up to 12MP ( Depending on IP camera )
Compression H.265, H264
Recording Mode Time-lapse, event, Pre- event, Panic
trigger events Alarm in, Auidio Detection, Motion Detection, Trip-zone, Tampering, Video Loss, Text-in, Etc.
PLAYBACK
Performance 64ch synchronous playback
Search Mode Time-lapse,Event log, text-in, Thumbnail
Digital Zoom x2 – x12
STORAGE
HDD SATA x8 RAID 1,5,10 supported
NETWORK
Client Connection Gigabit ethernet (client)x 1
Video in Connection gigabit ethernet (Video in) x 3, SFP (Video in)
Transmission Speed                                            50Mbps /  100 Mbps (BRP Mode)
Remote Data Export IDIS Player, AVI,JPG
Ebent Notification Email ( Attach clip(.cbf) .MP$), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way Audio Yes
Client Viewer IDIS CENTER, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio in/ Out Local(NVR) : 1 RCA / 1RCA 2HDMI, IP Camera : 64 / 64 ( Depending on Ip camera)
Alarm in / Out Local(NVR) : 4/1 , IP Cmera : 64 / 64 ( Depending on Ip camera)
Alarm Reset In 1
Serial Interface RS232(Terminal Block), RS485( Terminal Block)
USB usb 2.0 x 2, usb 3.0 x 1
User Interface Mouse, IR Remote Control, Network Remote Keyboard, Front Button ( Panic)
GENERAL
Operating System Embedded Linux

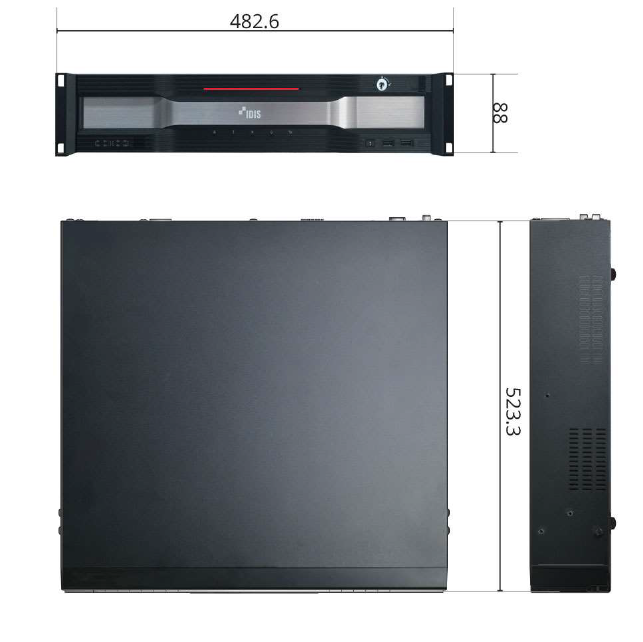

UNIT Dimensions ( W x H x D ) 482.6mm x 88mm x 523.3mm (19″ x3.5″ x 20.6″)
Unit Weight 12.24Kg ( 26.98lb) (with 2 HDDs)
Working Temperature                              0°C to 40°C ( 32°F – 104°F)
Operating Humidity 0% ~ 90%
Power Consumption 100-240V-,50/60 Hz, 6.0-3.0A, 145W

100-240V-,50/60 Hz, 8.0-4.0A, 145W x2 ( Dmodel Only)
Approvals FCC, UL, CE,CB,KC,PSE
