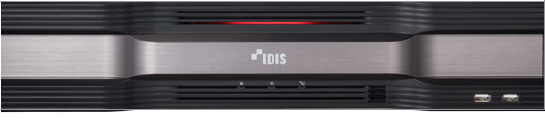

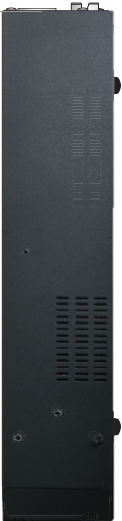

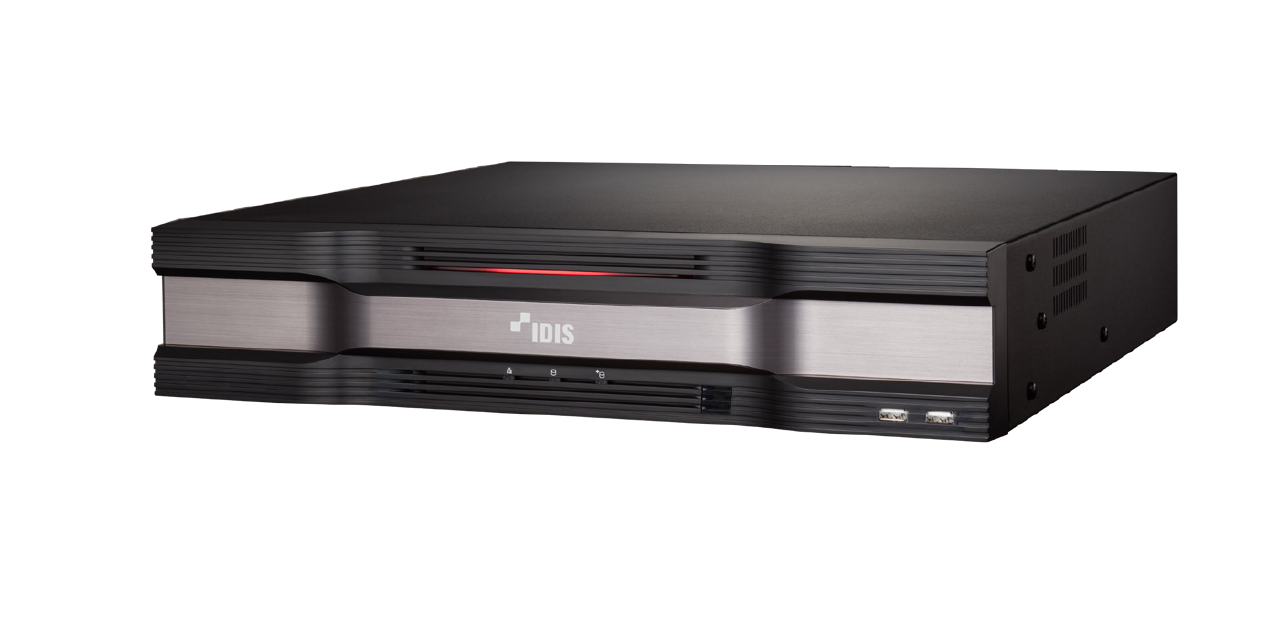

DR-6516P

DirectIP 6500 Series H.265 4K Recorder

• Total incoming throughput 320Mbps
• Up to 480ips FHD real-time recording
• Supports H.265 / H.264 codec
• Supports UHD display
• Up to 480ips live display
• Easy to install, set-up, and play with DirectIP cameras
• Built-in 16 channel PoE Switch
• Expandable up to 124TB using eSATA storage
• Supports RAID 1
• Supports one click network configuration through FEN service
• Supports third party cameras (Axis, Panasonic, ONVIF)
• NDAA Compliance

Video
Video Inputs 16 IP Channels
Max. Incoming Throughput 320Mbps
Scanning Mode Progressive Scan
Supported Camera DirectIP, AXIS, PANASONIC, ONVIF
Video Outputs 2 HDMI
Display Resolution HDMI : 3840 x 2160, 1920 x 1200, 1920 x 1080,
1680 x 1050, 1600 x 1200
Display Speed Up to 480ips
Digital Zoom x2 ~ x12
RECORDING
Max. Throughput 180Mbps, 480ips@FHD
Recording Resolution Up to 12MP (Depending on IP Camera)
Compression H.265, H.264
Recording Mode Time-lapse, Event, Pre-event, Panic
Trigger Events Alarm In, Audio Detection, Motion Detection, Trip-zone,
Tampering, Video Loss, Text-in, Etc.
PLAYBACK
Performance 16ch synchronous playback
Search Mode Time-lapse, Event Log, Text-in
Digital Zoom Digital Zoom
STORAGE
HDD SATA x 6, eSATA x 4, RAID 1 supported
Total Capacity 124TB=10TB x 6(Internal) + 4TB x 4 x 4(External))
NETWORK
Client Connection Gigabit Ethernet (Client) x 1
Video In Connection Gigabit Ethernet (IP Camera) x16 +Gigabit Ethernet(Ext) x1
Transmission Speed 50Mbps / 100Mbps (BRP Mode)
Camera Power PoE (IEEE 802.3at Class 4) Supported 16 Ports, 120W
Remote Data Export IDIS Player, AVI, JPG
Event Notification Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W,
Push Notification (IDIS Mobile)
Two-way Audio Yes
Client Viewer IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In / Out Local (NVR) : 1 RCA / 1RCA + 2HDMI
IP Camera : 16 / 16 (Depending on IP Camera)
Alarm In / Out Local(NVR) : 4 / 1
IP Camera : 16 / 16 (Depending on IP Camera)
Alarm Reset In 1
Serial Interface RS232 (Terminal Block), RS485 (Terminal Block)
USB USB 2.0 x 2, USB 3.0 x 1
User Interface Mouse, IR Remote Control, Network Remote Keyboard
GENERAL
Operating System Embedded Linux

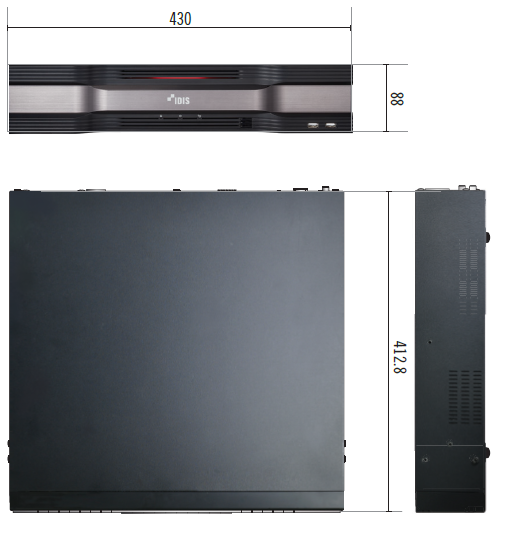

Unit Dimensions (W x H x D) 430mm x 88mm x 412.8mm (16.9” x 3.5” x 16.25”)
Unit Weight 6.75kg (14.88lb) (with 1 HDD)
Working Temperature 0°C to 40°C (32˚F ~ 104˚F)
Operating Humidity 0% ~ 90%
Power Input AC 100-240 V, 50/60Hz, 3.0 – 1.5A
Power Consumption 100-240V~, 50/60Hz, 3.0-1.5A, 250W
Approvals FCC, UL, CE, CB
