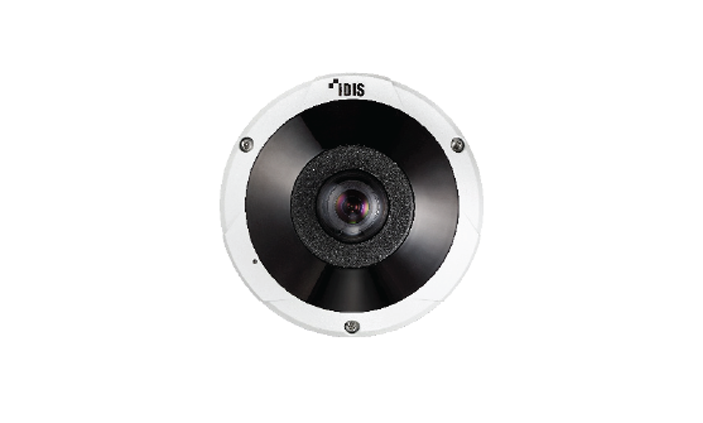

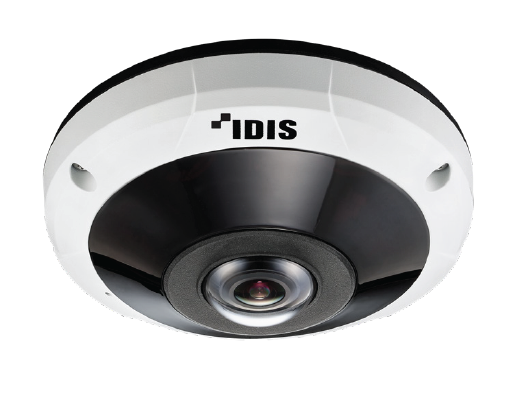

DC-Y6C16WRX

12MP Vandal-Resistant IR Fisheye Camera

• Easy Installation with DirectIP NVR
• 12MP Sensor / 8.6MP (2944 x 2944) Resolution
• Fixed-focal Lens (f=1.6mm)
• micro SD / SDHC / SDXC, Smart Failover (Up to 256GB)
• Two-way Audio
• Alarm In / Out
• IK10 / IP67 Supports

•PoE (IEEE 802.3af Class 3), 12V DC
•Day and Night (ICR)
• True Wide Dynamic Range (WDR)
• IR LED (Distance : 10m / 32.8ft)
• Various viewing composition,
6 dewarping view modes
• Supports ONVIF

Video
Image Sensor 1/2.3″ 12MP CMOS
Max. Resolution 2944 x 2944
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length f=1.6mm
Aperture F2.0
Iris Control Fixed Iris
Angular Field of View 180º(H), 180º(V), 180º(D)
Pan / Tilt Range –
Min. Illumination Color : 0.3 Lux @ F2.0
B/W : 0 Lux (IR LED On)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker,
Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR Cut Filter with Auto Switch
IR Distance (LEDs) 10m (4ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation On / Off
Image Stabilizer –
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap
Viewing Composition 1O, 1P, 1P2R, 2P, 4R, 1O7R
Video Out –
NETWORK
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Supported
Bitrate Control H.264 – CBR / VBR, H.265 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate 30ips : 2944 x 2944
15ips : 2944 x 2944 (WDR)
Supported Resolution 2944×2944, 2208×2208, 2944×1472, 1472×1472, 768×768, 768×384, 736×736
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTS Yes (Up to 60MB)
Edge Storage micro SD / SDHC / SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger Event Motion Detection, Audio Detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio In/ Out 1 (Built In MIC)+1 / 1
Alarm In / Out 1/1
ENVIRONMENTAL
Vandal Proof Casing IK10
Outdoor Ready IP67
Operating Temperature -30°C ~ 50°C (22°F ~ 122°F)
*Starting Up at Above 0°C (32°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source 12VDC, PoE IEEE 802.3af (Class 3)
Power Consumption 12V=, 0.94A, 11.3W
PoE, IEEE 802.3af(Class 3), 10.6W
Approval FCC, CE, KC
MECHANICAL

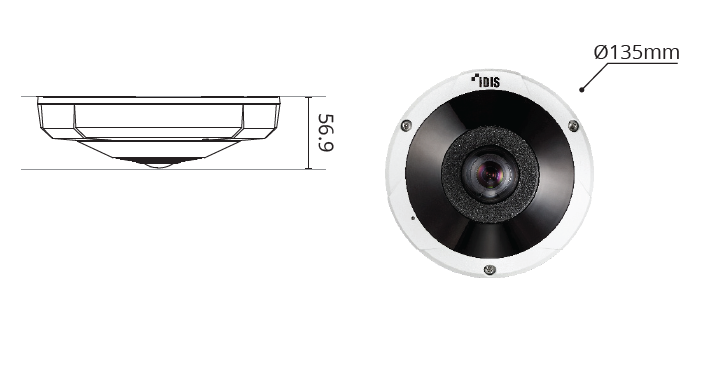

Dimensions (W x H) Ø135 x 56.9mm (Ø5.31″ x 2.24″)
Weight 0.67kg (1.47 lb)
