| Video |
| Image Sensor |
1/3″ CMOS |
| Max. Resolution |
1920 x 1080 |
| Scanning Mode |
Progressive Scan |
| Lens Type |
Motorized Vari-focal |
| Focal Length |
f=9 – 22mm |
| Aperture |
F1.5 – 2.8 |
| Iris Control |
P-Iris |
| Angular Field of View |
Wide : 33.8º(H), 18.8º(V), 39.2º(D) Tele : 14.2º(H), 8º(V), 16.2º(D) |
| Min. Illumination |
COLOR : 0.3 lux @ F1.5 B/W : 0 lux (IR LED ON) |
| Dynamic Range |
120 dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15) |
| Day and Night |
IR cut filter with auto switch |
| IR Distance (LEDs) |
30 m / 98.4 ft (10 ea) |
| Image Setting |
Configurable Exposure, White Balance, Sharpness |
| Digital Noise Reduction |
Configurable 2DNR/3DNR |
| Backlight Compensation |
On / Off / HSBLC |
| Mirroring / Pivot |
Horizontal / Vertical / Pivot |
| Image Stabilizer |
– |
| De-fog |
On / Off |
| Privacy Masking |
8 Zones |
| Intelligent Video |
Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out |
1 BNC |
| Network |
| Video Compression |
H.264 (MP), M-JPEG, H.265 |
| Intelligent Codec |
Supported |
| Bitrate Control |
H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression |
ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio |
Yes |
| IP Camera Protocol |
DirectIP™ Mode : DirectIP Compatibility Mode : IDIS ONVIF Profile S |
| Max. Frame Rate |
DirectIP™ Mode : 30ips : 1920 x 1080(WDR) Compatibility Mode : 60ips : 1920 x 1080 30ips : 1920 x 1080(WDR) |
| Supported Resolution |
DirectIP™ Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 Compatibility Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 |
| Multi-video Streaming |
DirectIP™ Mode : Quadruple Streaming Compatibility Mode : Quadruple Streaming |
| Network Protocols |
DirectIP™ Mode : DirectIP Protocol Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
| Security |
DirectIP™ Mode : SSL Encryption Compatibility Mode : Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client |
DirectIP™ Mode : DirectIP NVR Connection Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet |
RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer (NLTS |
Yes (Up to 60MB) |
| Edge Storage |
micro SD/SDHC/SDXC, Smart Failover (Up to 128GB) |
| ALARM AND EVENT |
| Trigger Event |
Motion Detection, Audio Detection, Tampering, Trip Zone |
| Event Notification |
Remote S/W, Email (with Image) |
| Audio In/ Out |
Line-in 1ea / Line-out 1ea |
| Alarm In / Out |
Input 1ea / Output 1ea |
| Environmental |
| Vandal Proof Casing |
IK10 |
| Outdoor Ready |
IP66, Heater |
| Operating Temperature |
-40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity |
0% ~ 90% |
| Electrical |
| Power Source |
12VDC, PoE (IEEE 802.3af Class 3) |
| Power Consumption |
12V=, 0.72A, 8.64W PoE, IEEE 802.3af(Class 3) |
| Approval |
FCC, CE, KC |
| Mechanical |

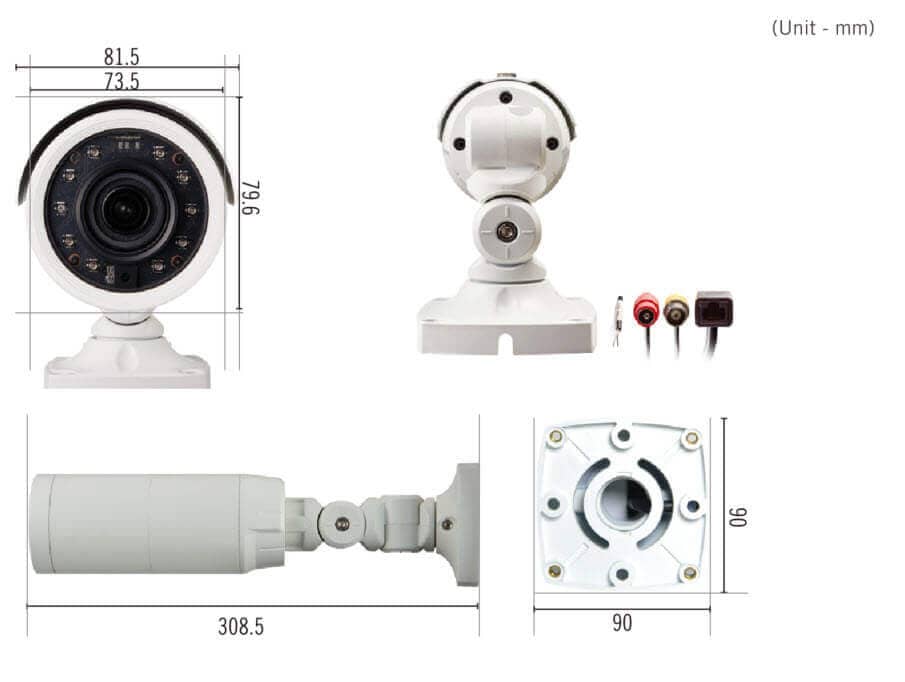

| Dimensions (W x H) |
Ø73.5mm x 308.5mm (Ø2.9″ x 12.15″) |
| Weight |
1.17 kg (2.58 lb) |
