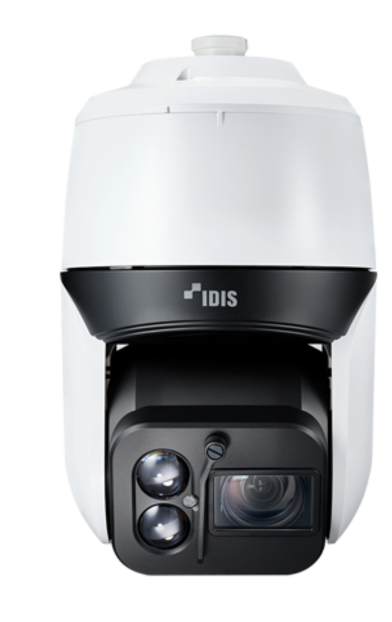

DC-S6681HRX

6MP 31x IR PTZ Camera / NDAA Compliant

  • Easy installation with DirectlP NVR
  • Two-way audio
  • Built-in heater
  • True Wide dynamic range (WDR)
  • Supports ONVIF
  • 6MP (3328 x 1872) resolution
  • Alarm in / out
  • POE (IEEE 802.3bt), 24V AC
  • Electronic image stabilization (EIS)
  • AF optical zoom lens (f=6.5 – 202mm), 31x zoom
  • IKIO / IP66 supports
  • Day and night (ICR)
  • IR Distance (200m / 656.2ft)
Video
Image Sensor 1/1.8″ CMOS
Max. Resolution 3328 x 1872
Scanning Mode Progressive Scan
Lens Type AF Zoom Lens
Focal Length 6.5 – 202mm
Aperture F1.55 – F4.8
Iris Control DC Iris (Hall Sensor)
Angular Field of View Wide : 630 (H) , 37.60 (V) , 70.30 (D) Tele : 2.40 (H) , 1.30 (V) , 2.70 (D)
Pan / Tilt Range –
Min. Illumination Color: 0.1 lux
Fl.55 B/w : O lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker,
Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night Yes
IR Distance (LEDs) 300 m/984.3ft (2ea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Mirroring/ Pivot Horizontal / Vertical
Image stabilizer Yes (EIS)
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out 1 terminal block
Viewing Composition 1O, 1P, 1P2R, 2P, 4R, 1O7R
Video Out –
Pan/Tilt/Rotate
Pan Range 360° (endlesss)
Pan Speed O.02-240°/sec( preset 240°/sec)
Tilt Range 200° (-10 –  190°)
Tilt Speed O.02-240°/sec( preset 240°/sec)
Preset 256ea
NETWORK
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Yes
Bitrate Control H.264 – CBR / VBR, H.265 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate 30ips : 2944 x 2944 (WDR)
Supported Resolution 3328 x 1872, 1920 x 1080, 1280 x 720, 640 x 360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTS Yes (Up to 60MB)
Edge Storage micro SD / SDHC / SDXC, Smart Failover (Up to 512GB)
ALARM AND EVENT
Trigger Event Motion Detection, Audio Detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio Alarm yes
Audio In/ Out 1/1
Alarm In / Out 8/2
ENVIRONMENTAL
Vandal Proof Casing IK10
Outdoor Ready IP66, Heater
Operating Temperature -40°C – +55°C (-40°F -+131°F)
Operating Humidity 0% ~ 90%
ELECTRICAL
Power Source 24VAC, High-PoE (75W)
Power Consumption HEATER, IR LED OFF 24V-, 1.2A, 21.1W, 50/60Hz High-PoE, 50-57V, 20.3W HEATER, IR LED ON 24V-, 3.4A, 65.8W,
50/60Hz High-PoE, 50-57v, 60.OW
Approval FCC, CE, KC
MECHANICAL

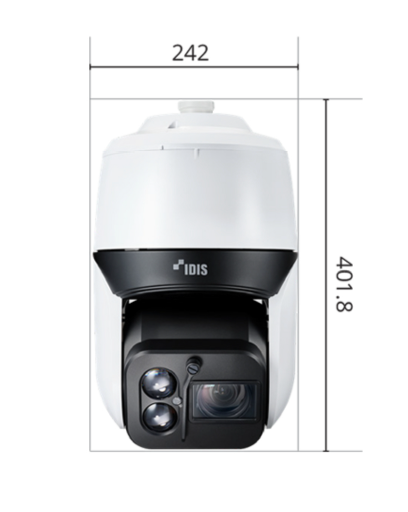

Dimensions (W x H) 0242mrn x 401.8mm (09.52″ x 15.82″)
Weight 7.4 k (16.31 Ibs)
